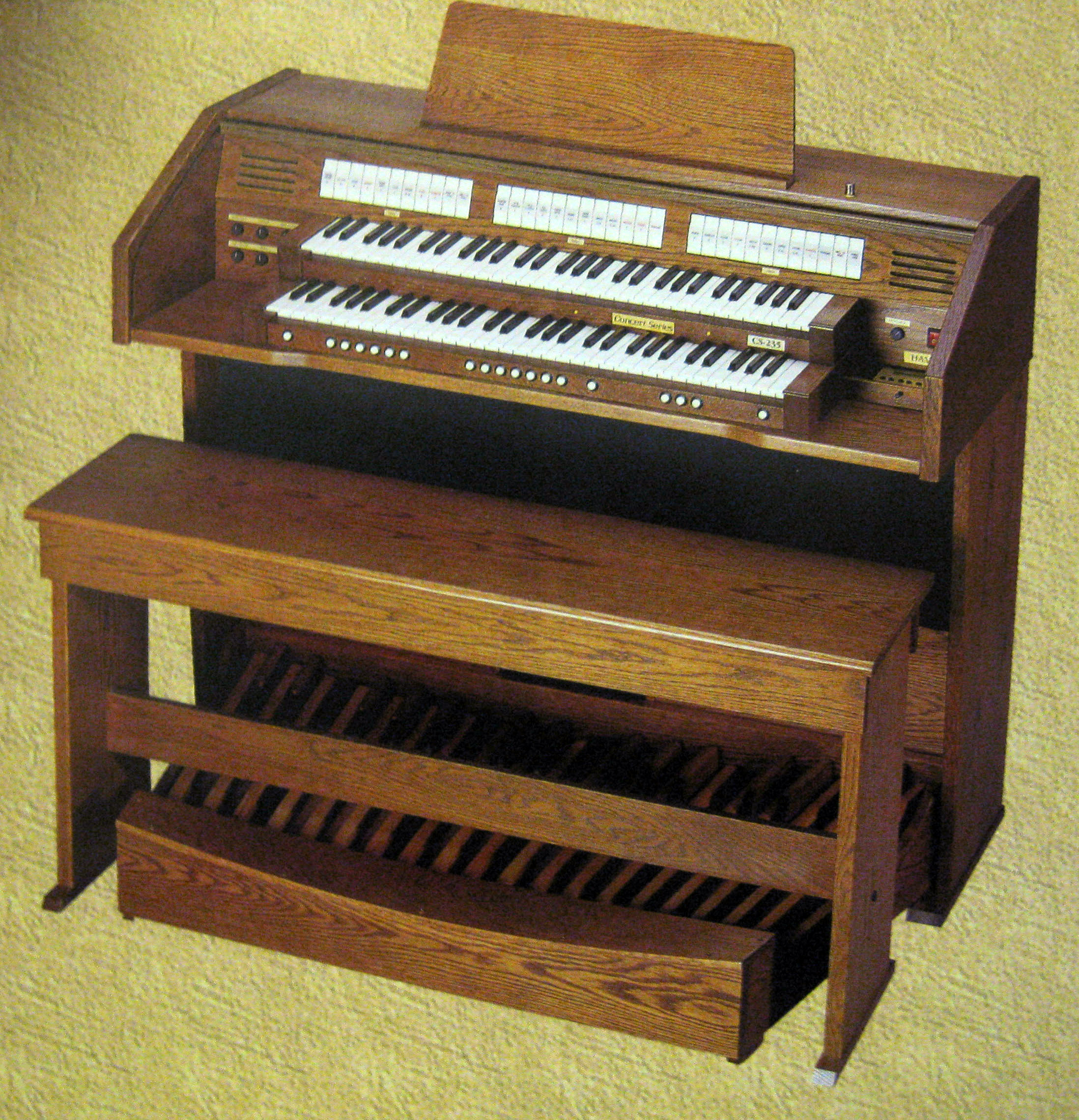

HAMMOND CS-235

De CS 235 is gebaseerd op de Content D 2332.

Registratielijst:

Pedal
32' Contra Violone
16' Sub Bass
8' Octave
8' Gedeckt
4' Choral Bass
4' Flute, Mixture IV,
16' Fagott
8' Trombone
Great to Pedal
Swell to Pedal

Rugwerk/bovenklavier:
16' Bourdon Doux
8' Open Diapason
8' Viola di Gamba
8' Voix Celeste
4' Flauto Dolce
2 2/3' Nazard
2' Super Octave
1 1/3' Larigot
Mixture III
8' Hautbois
8' Clarinet
Tremulant

Hoofdwerk/onderklavier:
8' Montre
8' Rohr Flute
4' Aeloine
4' Prestant
2 2/3' Twelfth
2' Flautino
Cornet V
Mixture IV
8' Trompette
Tremulant
Swell to Great

Manual Bass
Master Volume, Transpose, Preset Bank Select, Voice Select, Pedal Volume, Chorus Select
Expression Pedals for Great and Swell
Personal Control Center:
6 different P.I.P. (Personal Intonation Preset) settings containing:
Overall Pitch, Historical Tunings (Various historical Temperaments) Tremulant Speed & Depth for Swell & Great Manuals, 16 Reverb Programs, Manual Inversion, Adjustable Wind Pressure, Adjustable Fluctuation, Adjustable Dynamic Contour, Adjustable Volume, Attack, Chiff Volume & Chorus for each Voice and each key
Extra Voices: 64 voices with adjustable Volume for Swell, Great & Pedal
MIDI: IN, OUT & THRU connections

Verdere specificaties:

Two five octave manuals
32 note Radial Concave Pedal board
Monobass
Master, Pedal and Reverb Volume Control
Transposer switch -3/+2
Voice Control 1/2/3
Chorus Control 1-6
Two expression pedals
Presets PP-T/HR
Free Combinations 1-6
Memory Bank 1-6
Capture System 12 x 6 Generals
Set and Cancel
Reeds Off
Key Programmable functions:
Reverb Time, Pitch, 6 Different Tunings, Manual Inversion, Wind pressure, Fluctuation, Tremulant Speed and Depth, Dynamic Contour, Chiff.
Demosong
Amplification 2 x 50 Watt, 4 Loudspeakers
Midi In Out Thru, 3 channel In/Out
Midi Switches On/Off Pedal, Great and Swell
Audio In/Out Stereo
Headphones
25 pin PCC Handset Connector
Roll top with lock
Pedal Illumination
Standard finish: Light or dark oak real wood veneer
Options:
PCC and Sequencer drawer with:
Volume and Attack adjustable for individual stops
Chiff and Chorus adjustable for individual stops
Tuned Attack for individual Reeds adjustable
Sequencer: Tempo, Stop, Play and Record

DIMENSIONS:
Height            114 cm
Width             137 cm
Depth             57 cm  excl. pedal board
Depth             90 cm  incl. Pedal board
Weight           145 kgs incl. bench/pedal board

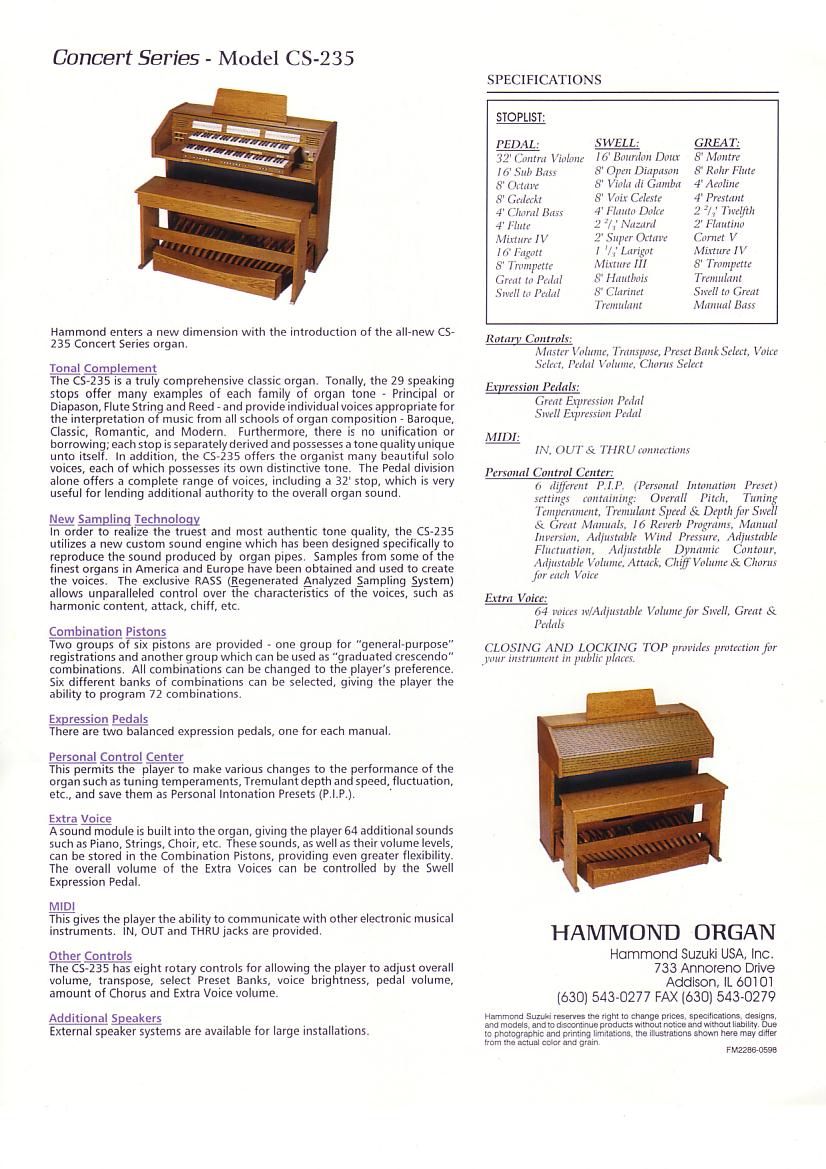

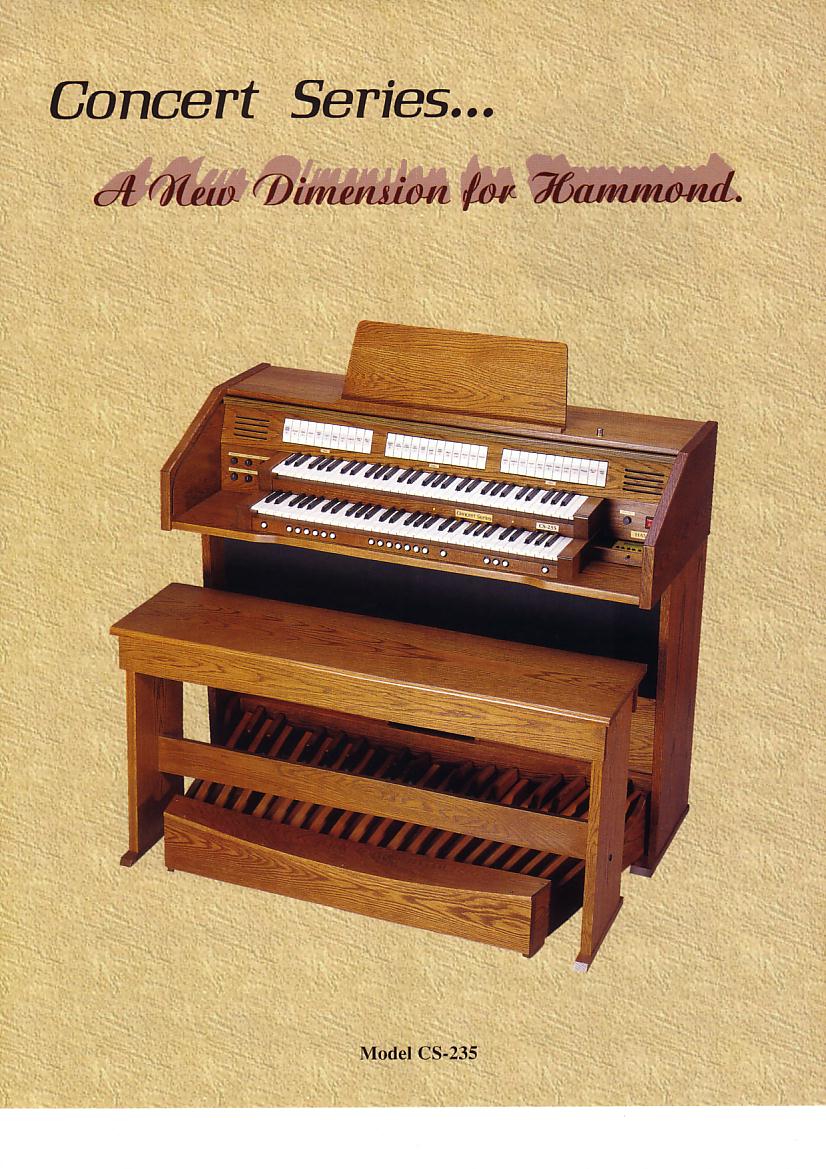

Hier de originele folders:
