DIVERSE ANDERE UITVINDINGEN

                                                           DE BRIDGETABLE

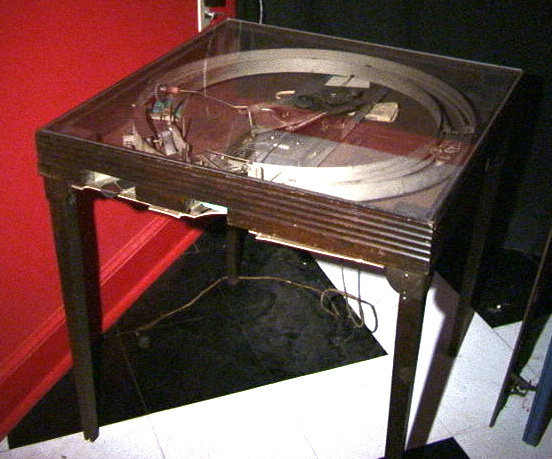

                                              DE BRIDGE TAFEL OP Z'N POOTJES

Hieronder volgt een beschrijving van de CARD DEALING TABLE, volgens CRISTIE'S (UK) waar er een geveild werd.

CARD TABLE -- HAMMOND, LAURENS (1895-1973) INVENTOR. "HAMMOND ELECTRIC BRIDGE TABLE." MODEL 4H, 115. SER. NO. 7674. CHICAGO: HAMMOND CLOCK, CO., [1932]

28½ X 28½ X 28½ INCHES. WALNUT-STAINED SCALLOPED-RIBBED SIDES AND FOLDING TAPERED LEGS, REMOVABLE TOP (COVERING REPLACED) INSIDE THE ELECTRO-MECHANICAL DEVICE FOR DEALING CARDS, ALUMINUM FRAMEWORK, PLASTIC GEARS, BRAIDED CORD AND BROWN PLASTIC PLUG, THE WHOLE MOUNTED ON ORIGINAL PICTORIAL PRINTED BASE WITH INSTRUCTIONS AND COMMENTS ON THE TABLE'S FUNCTIONS.

A LUXURY FOR THE BRIDGE ENTHUSIAST. Hammond's electro-mechanical bridge table was introduced in 1932, just in time for Chicago's 1933 Century of Progress exhibition.

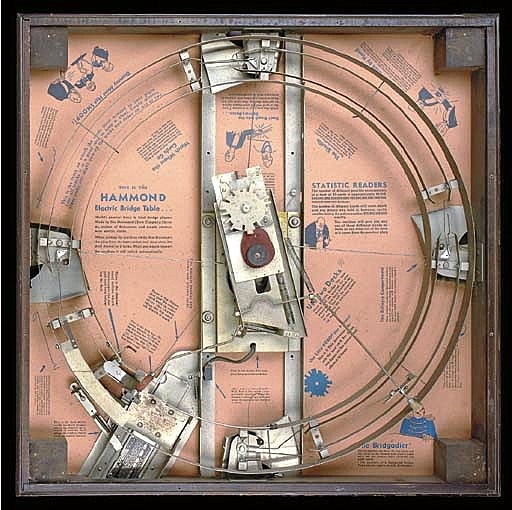

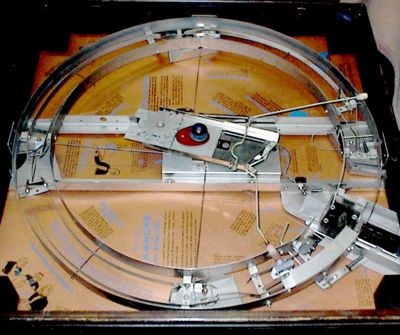

The Hammond Company and its inventor/owner Laurens Hammond were known primarily for its production of clocks and organs, notably the B3. A chess and bridge aficionado, Hammond invented the electric bridge table wherein a card deck is placed in the deck tray. Pushing in this tray activates an electric motor by opening a strategically placed switch on the metal frame. As the mechanism turns (clockwise) an arm bearing a rubber "thumb" swings around. When it nears the tray containing the cards, it lowers and pulls the top card up a ramp onto the circular track. A second arm hooks the card and carries it around the track.

The mechanism in the center "decides" which of the four hands will get the card.
A serrated wheel has notches cut to three depths in 52 positions. The depth of the notch determines the destination hand. Each full deal cycle requires 53 rotations of the mechanism, so each deal is begun from a different point in the pattern. Hammond called this the "robot."

Een zeer interessante website, die zelfs geheel gewijd is aan deze bridge-tafel,
vindt u HIER

*************************************************************************

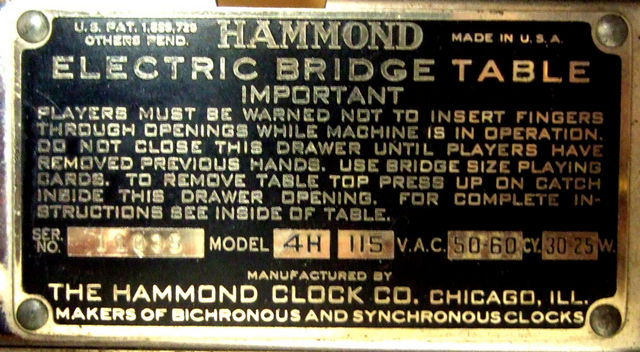

TYPEPLAATJE MET SERIENUMMER VAN DE BRIDGE TAFEL
************************************************************************

***********************************************************************

                                                HAMMOND AND MOVING PICTURES

                                LAURENS HAMMOND MET ZIJN TELEVIEW

***********************************************************************

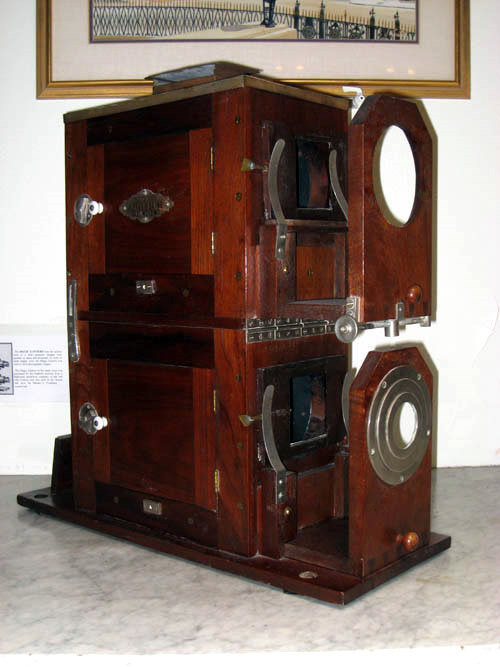

Magic Lantern 3D SHADOWGRAPH HAMMOND 20'S
***************************************************************************

LAURENS HAMMOND MOVING PICTURES
************************************************************************

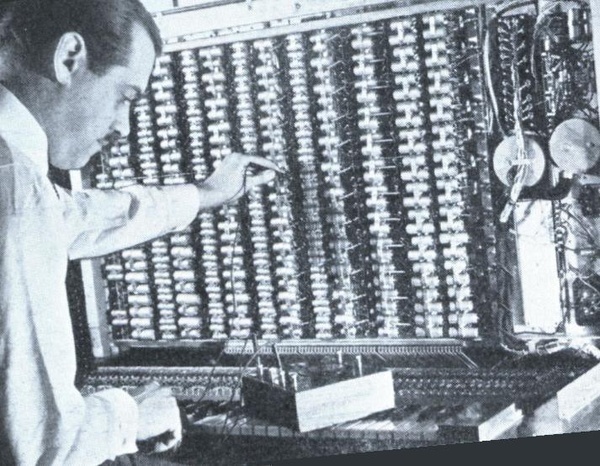

LAURENS Hammond At Work with a NOVACHORD

************************************************************************

                                        HANDTEKENING LAURENS HAMMOND
************************************************************************
