De Leslie Encyclopedie

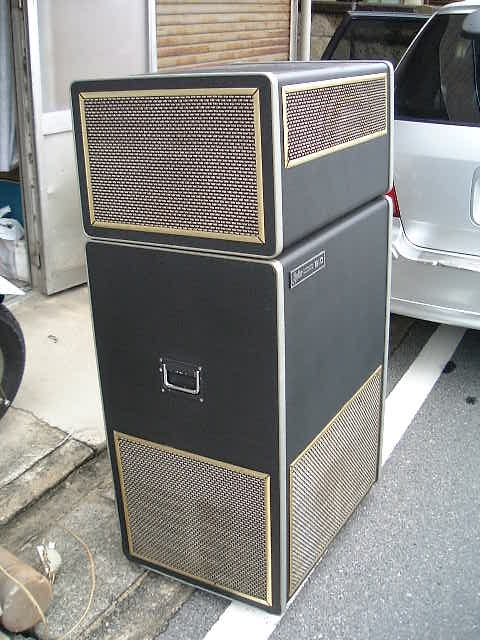

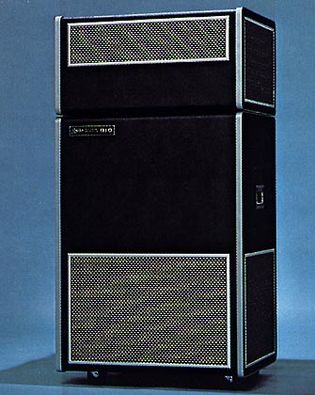

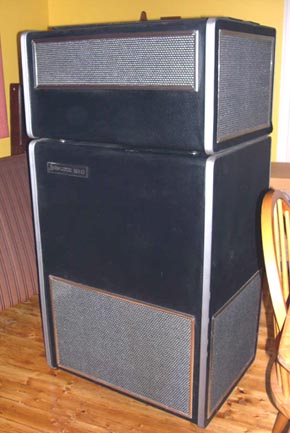

LESLIE MODEL 910



Geïntroduceerd in 1972 was de Leslie 910 de opvolger van de PRO 900
De 910 was een redelijk succesvol model. De meeste specificaties komen echter overeen met model 900.

  • Height 55 inches.
  • Width 29 inches.
  • Depth 21 inches.
  • Has 2 rotors and 6 speakers.
  • Accepts 1 channel from the source.
  • The amp. provides 100 Watts of RMS power.
  • A 9 pin connector:
    1. Audio Ground
    2. Flute/Tibia audio
    3. No Connection
    4. Main/Stationary audio
    5. 29 VDC for control head
    6. Fast Motor Control
    7. Slow Motor Control
    8. AC power Return
    9. AC Power Hot
  • Leslie recommends it for use with Single channel organs.
  • Has a reverb system inside.
  • Has an internal Pre-amp.
  • Has a tolex covered portable style cabinet.

Hieronder 9 pin preamp 9370
