HAMMOND CS-685

De CS 685 is gebaseerd op de Content D 6800.

De Hammond CS-685 is  op klassiek gebied een waar meesterwerk. Een prachtig, weliswaar typisch Amerikaans ontwerp, dat echter overal ter wereld aftrek vond tot in de Filippijnen toe. Hieronder een Engelstalig stukje uit het blad Hammond Times uit 2003 over de markt  introduktie van dit veelomvattende instrument.

The CS-685 represents a very dramatic step forward, states Michael Wojnar, National Institutional Sales Manager:


This is a direct result of requests from our dealer organization for a larger Concert Series model with drawknobs and expanded capabilities.
The expanded RASS (Regenerated Analyzed Sampling System) tone generating engine in the CS-685 permits unparalleled realism in the reproduction of pipe organ sounds by allowing minute control of the harmonic structure of each stop or rank, says Dennis Fioramonti, Executive Vice President:


This new system allows the personal influence of the organist in adapting the ranks, as well as more authentic sound. Variable tone and chorus controls are provided to give the player the ability to easily create the overall organ sound he or she desires."
Hammond Suzuki USA would like to sincerely thank all of our Dealers and Sales
Associates for their continued sales efforts.
Hammond Suzuki USA will continue to strive in developing the very best in Institutional, Home, Classical, Leslie and Professional products.
We also continue to improve our services to you for Technical Support, Product Quality, Merchandising, "Point of Purchase" materials, Sales and Marketing Programs and over-all company Support and Communication.
Dennis G. Fioramonti
Executive Vice President
Hammond Suzuki USA, Inc.

De Hammond CS-685  in hoofdpunten:

Drie klaviers orgel met extra floating solo werk
53 Registers en Chimes
32-tonig radiaal concaaf pedaal
Verlichte trekregisters
Ingebouwde PCC( programmeerunit)
Zwelwerk uitgevoerd met sub- en superkoppels
In hoogte verstelbare bank
Standaard uitgevoerd met 112 (!)  ExtraVoice stemmen
Luxe meubeluitvoering met sierlijsten
8 Versterkers van 50 watt en 13 Luidsprekers
Setzersysteem met 84 memory banken voor ruim 800 vrij programmeerbare presets.

Eerst de Stop/Dispositie-lijst:

De Dispositie van het CS 685 orgel:

PEDAAL

ZWELWERK

HOOFDWERK

Violon 32'

Prestant 8'

Bourdon 16'

Prestant 16'

Bourdon 8'

Prestant 8'

Subbas 16'

Viola da Gamba 8'

Roerfluit 8'

Octaaf 8'

Voix Celeste 8'

Quintadeen 8'

Gedekt 8'

Gemshoorn 4'

Octaaf 4'

Koraalbas 8'

Nachthoorn 4'

Fluit 4'

Mixtuur IV

Nasard 2 2/3'

Quint 2 2/3'

Bazuin 32'

Blokfluit 2'

Octaaf 2'

Bazuin 16'

Mixtuur III

Cornet IV

Fagot 16'

Fagot 16'

Mixtuur IV

Trompet 8'

Hobo 8'

Cymbel II

Klaroen 4'

Trompet 4'

Trompet 16'

Koppel POS-PED

Tremulant

Trompet 8'

Koppel HW-PED

Sub Octaaf

Tremulant

Koppel ZW-PED

Super Octaaf

Koppel POS-HW

Koppel SOLO-PED

Unison Off

Koppel ZW-HW

Mono Bas

Koppel SOLO-ZW

Koppel SOLO-HW

SOLO

POSITIEF



Chimes (klokkenspel)

Holpijp 8'



Flute Harmonique 8'

Prestant 4'



Concert Fluit 4'

Roerfluit 4'



Clarinet 8'

Quintfluit 2 2/3'



Vox Humana 8'

Woudfluit 2'



Tuba 8'

Terts 1 3/5'



Trompet en Chamade 8'

Quint 1 1/3'



Tremulant

Sifflet 1'



Koppel Pedaal - Solist

Kromhoorn 16'




Dulciaan 8'




Tremulant




Koppel SOLO - POS




Koppel ZW - POS



FEATURES :

Three five octave manuals
32 note radial-concave pedal board
Three expression pedals: Swell, Great, Positive
(Solo expression combined with manual selected)
General Crescendo Pedal
Height adjustable bench
Illuminated Draw stops
Solo 7 stops and Tremulant
Swell 12 stops, plus Super Octave, Sub Octave, Unison Off and Tremulant
Great 13 stops and Tremulant
Positive 10 stops and Tremulant
Pedal 12 stops
Mono bass
General Capture System: 10 thumb pistons x 84 Memory Banks
10 fixed factory settings and 800 plus programmable presets and H.R. (Hand Registration)
R.O. (Reeds Off)
Cancel C.A. (Cancel Accessories: Couplers/Tremulants)
Cancel and Set
Personal Control Center:
Transpose -4/+5, Chorus 0-7, Memory Bank 1-8, Voice Control 1-2-3
Pedal and Reverb Volume
10 Reverb Programs
Internal/external Reverb Balance (external with optional MAS connected only)
Independent Volume control for Trumpet en Chamade/Tuba unenclosed
General Volume Control
Pitch A = 440 (409-471Hz)
Organ 1-2-3 (Memory for personal organ intonations)
Save and Reset
Manual Inversion (Great/Positive)
Tremulants: Speed and Depth Control
Temperament tuning: Equal Tempered, Kirnberger, Meantone, Pythagorean, Sauveur 1701,
Vallotti & Yong, Werckmeister, d’Alembert, Bach.
Wind pressure control, Volume control for individual stops and keys
Volume control for wind noise, Dynamic Contour, Fluctuation und Chorus control for individual stops
Midi IN, OUT, THRU
Midi All Notes Off
Midi controls for Pedal, Positive, Great, Swell and Solo
Extravoice: 112 sampled voices like woodwinds, brass, reeds, strings, choirs, harp and cembalo etc. for Solo, Swell, Great, Positive and Pedal incl. Volume control
Extravoice controls for Pedal, Positive, Great, Swell and Solo
Power On/Off
Audio Inputs and Outputs cinch, stereo
Headphone connector
Pedal board illumination
Magnetic pedal contact system
Amplification 8 x 50 Watts, 13 Loudspeakers

Dimensions
Height                                    134  cm
Width                                     164  cm
Depth without pedal board    77    cm
Depth incl. Pedal board          108  cm
Weight incl. bench and pedal board 300 kgs

Options
Wooden keyboards
Full Capture System
Mini Acoustic System
Additional amplification and speaker systems

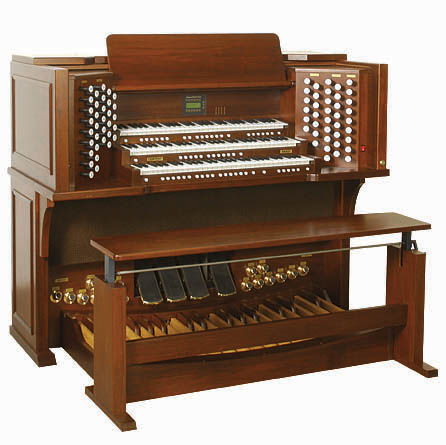

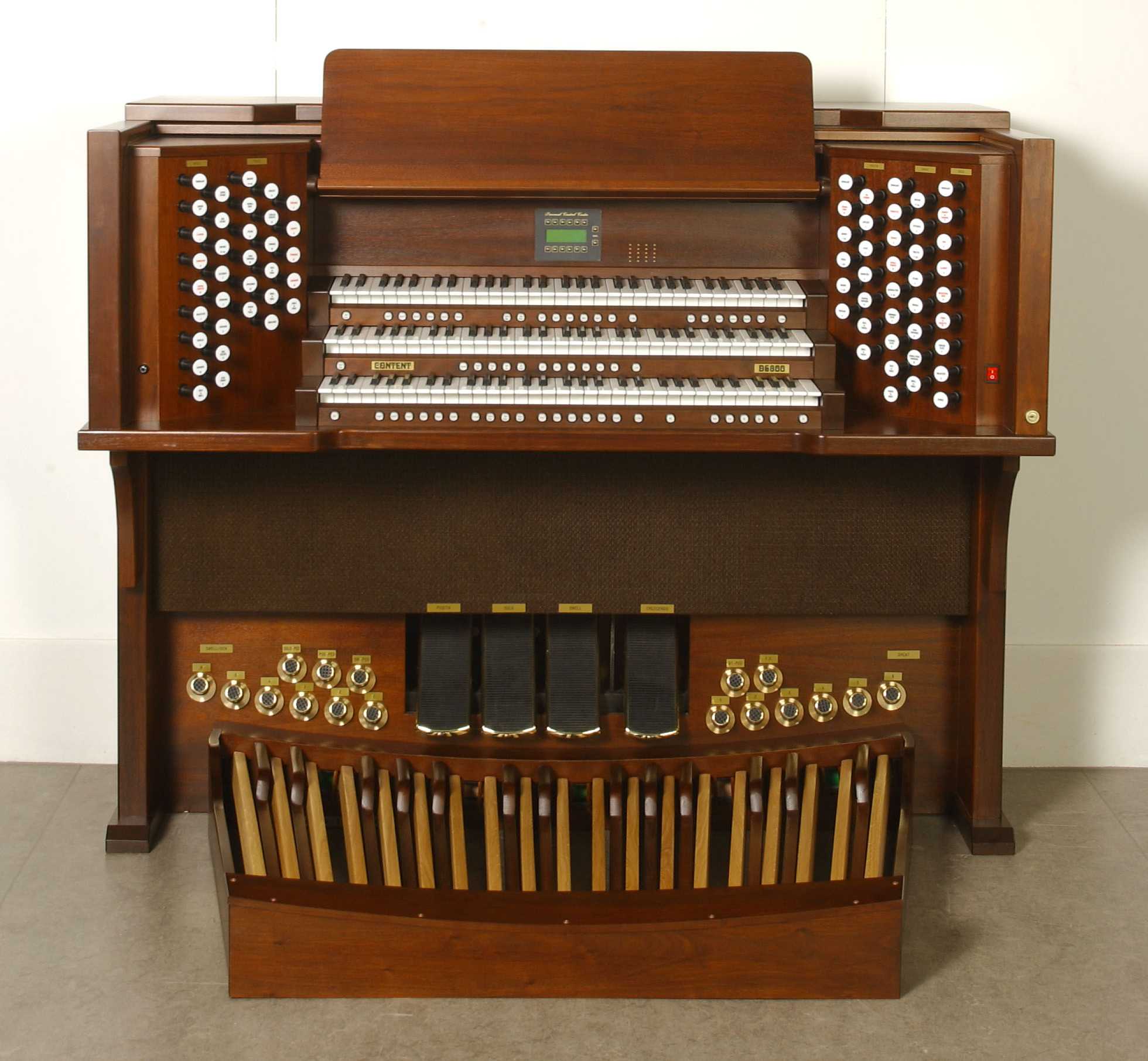

De fully loaded CS 685 (hier nog Content D6800 ge-badged)  met voetpistons en divisional presets.

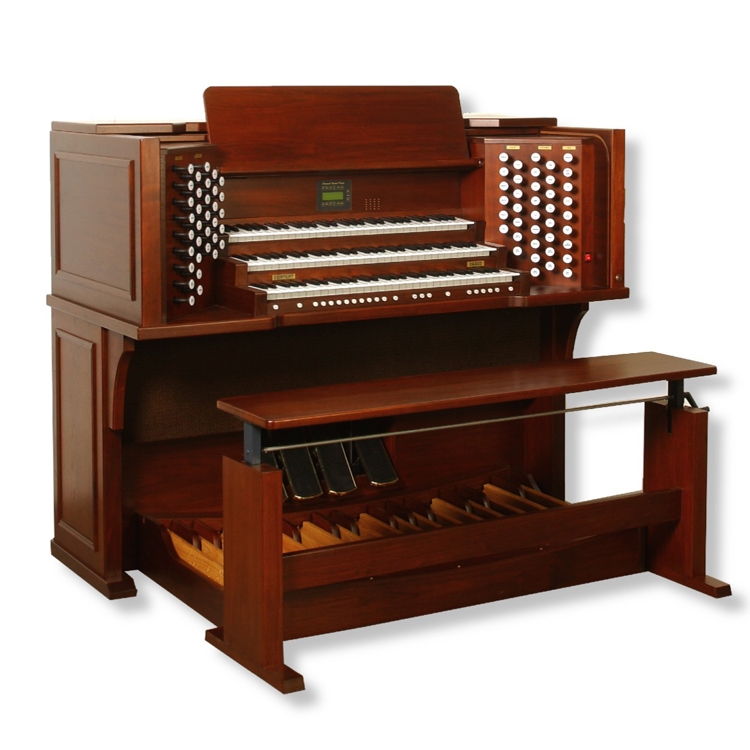

Hieronder de Content D-6800 (waar hij van afgeleid is), zonder voet pistons
en zonder Divisional Presets (Standaard uitvoering zonder eigen presets per klavier en pedaal)

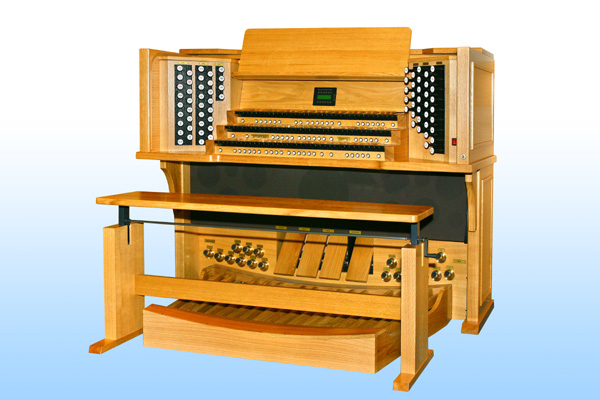

Hierboven een fully loaded versie van de CS 685 in blank eiken en sierlijsten achter de trekregisters .

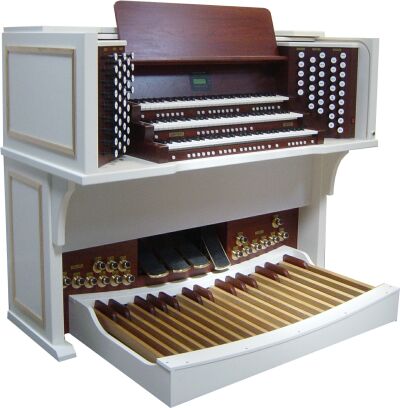

Hierboven een in opdracht gemaakte versie in wit slijplak en noten afwerking.

Hier een bespeling van de D 6800.
